5552725-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5552725-1
Datasheet:
Description:

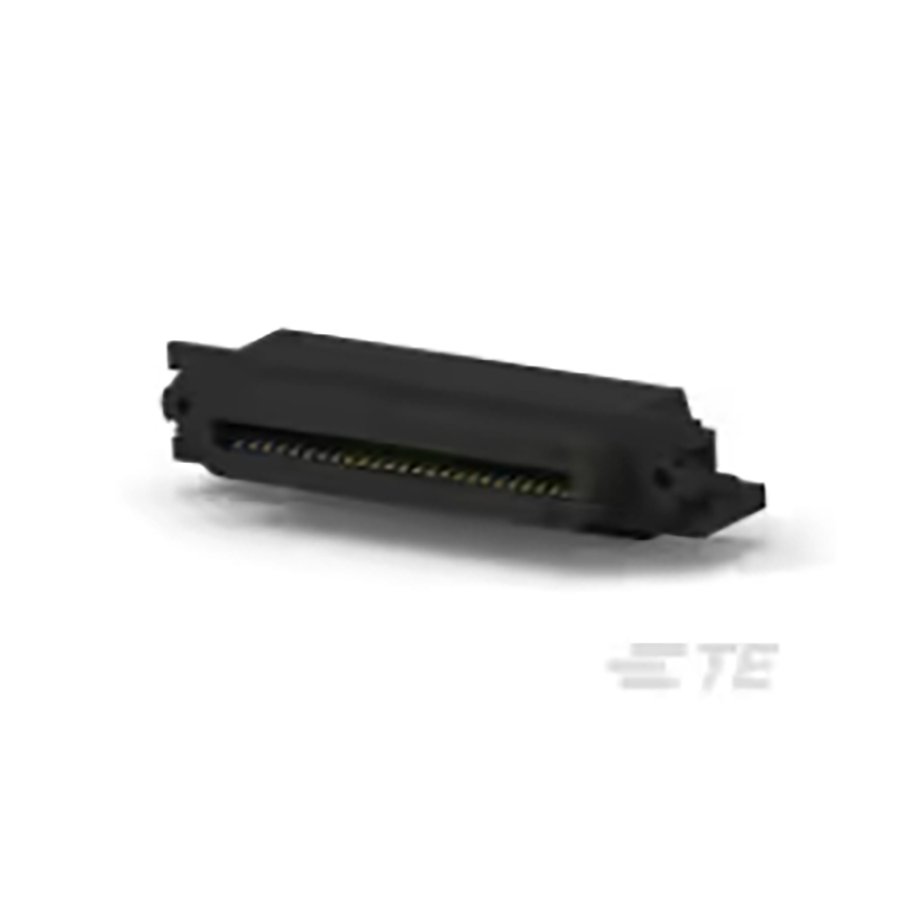

D-Sub Connectors Through Hole Receptacle Number of Positions:50 Solder Female
| Parameter | Value |
|---|---|
| Length | 83.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 50 |
| Packaging | Tray |
| Depth | 25.66 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Pitch | 2.16 mm |
| Type | Receptacle |
| Number of Terminals | 50 |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 50 |
| Connector Type | Receptacle |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Housing Color | Black |
| Plating | Thermoplastic |
| Panel Thickness | 1.57 mm |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Connector Lock | With |
Stock: 216
Distributors
pcbx
pcbxUnit Price$5.48865
Ext.Price$5.48865
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.48865 | $5.48865 |
| 10 | $5.42480 | $54.24800 |
| 25 | $5.36169 | $134.04225 |
| 50 | $5.29932 | $264.96600 |
| 100 | $5.23767 | $523.76700 |
| 300 | $5.17674 | $1553.02200 |
| 500 | $5.11652 | $2558.26000 |
| 1000 | $5.05691 | $5056.91000 |
